THE BLACKNIGHT

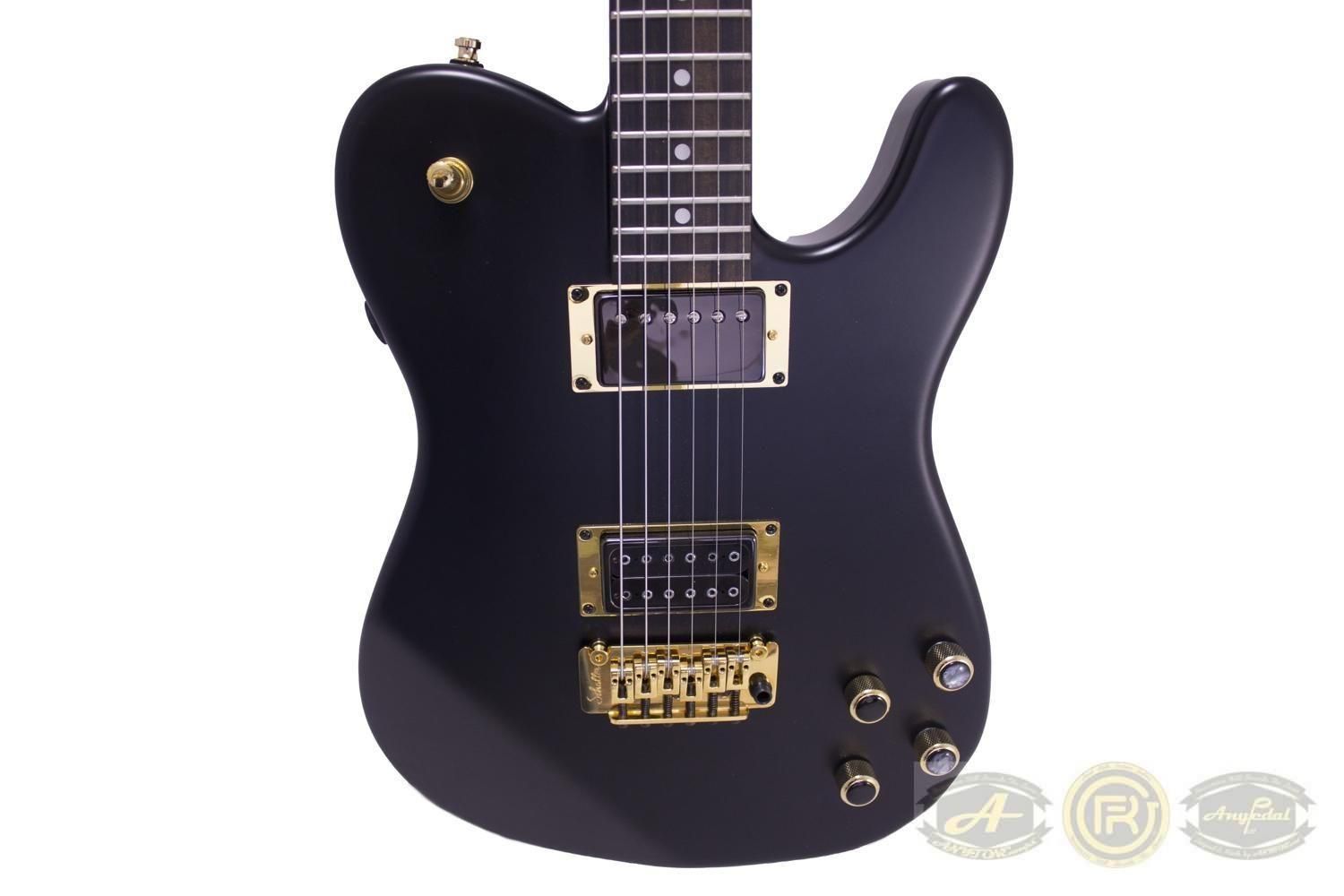

Halfway between a Tele deluxe and a Strat Elite, this model has the necessary modifications to qualify as one of our most versatile and professional guitars.
Designed to bring out 100% of the sounds of its humbucker's, it is a guitar with an elaborate electronic design, which adapts to any type of sound that your melodies demand. The wood used as in all our models is of high quality, chosen and treated with great exigency to obtain bodies and masts that are invariable with the passage of time.

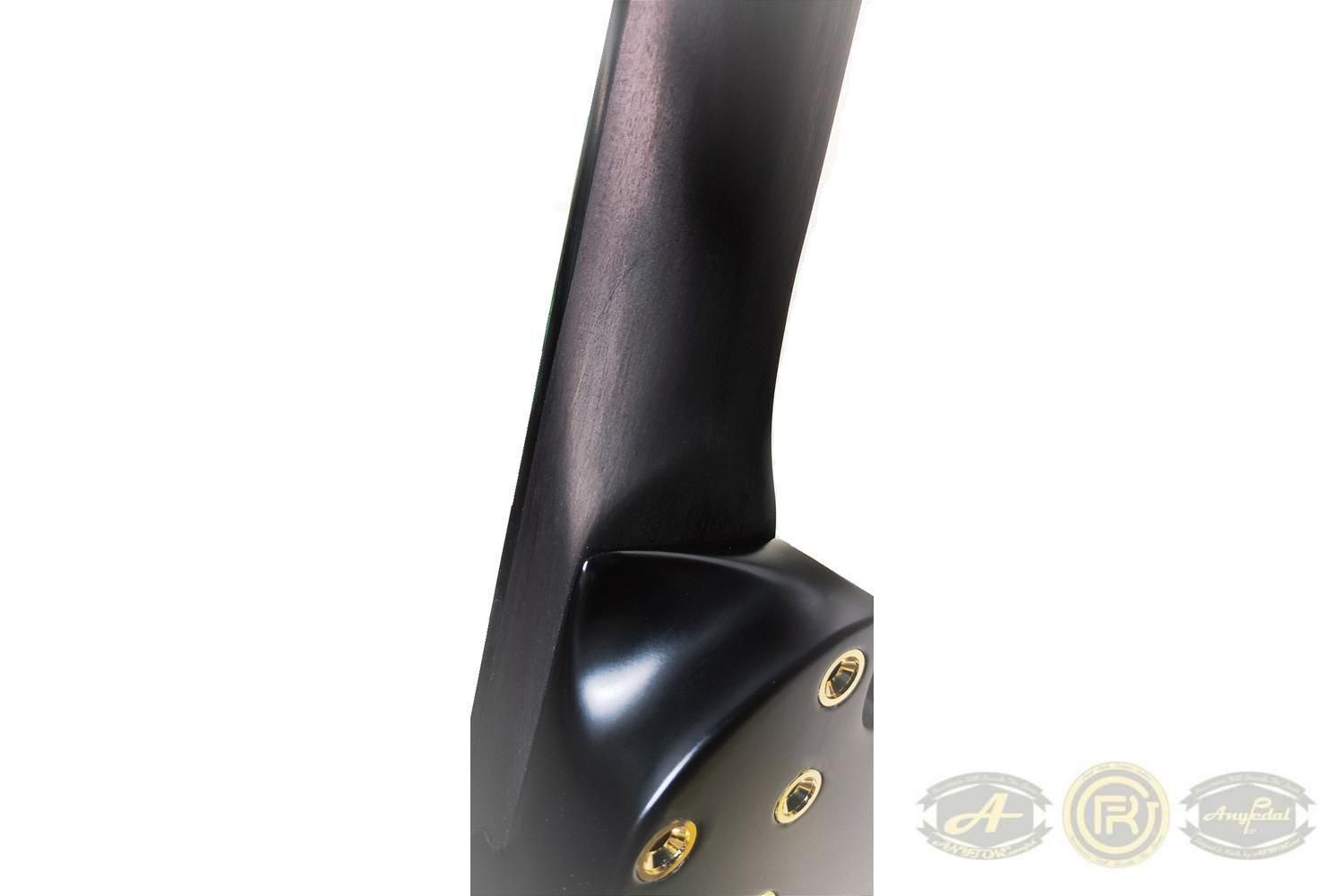

Special anatomic recess in the neck, under the last frets to facilitate access for bending.
Its "6-position" switch, which replaces the traditional three-position switch, leaves it up to the owner's imagination to get the most out of it by combining it with the standard dual pickups.
It is manufactured with linden wood body and maple and ebony neck, although we can build it according to the specifications requested by the customer.

MODEL

THE BLACKNIGHT

BODY

Linden.
Solid bolted, 5 points.

MASTIL

Maple.

DIAPASON

Ebony.

INLAYS

Mother-of-pearl.

MASTILE PROFILE

Thin C bi-block.

RADIO DIAPASON

12" radius.

N. OF FRETS AND TYPE

22 Mid-jumbo frets, nickel-silver.

HARMONIC SCALE

25,5"

CEJUELA

Self-lubricating brass.

ALMA

Adjustable steel double-acting, adjustable blade.

PILLS

Tonerider.
Neck: 1 TR AC IV high gain humbucker.
Bridge: 1 Humbucker TR Alnico blues II.

CONTROLS

* Volume 1: mast pickup
* Tone1: mast pickup.
* Volume 2: pickup bridge.
* Tone 2: bridge pickup.

* Push-pull on tone 1: Activates-deactivates more brightness on mast puckup.
* Push-pull on tone 2: Activates-deactivates the type of "split" on the north or south coils.

* Pickup Selector: 6-position Freeway 3×3 switch. Switches the different combinations of pickups according to the electronic diagram.

ELECTRONICS

* Electronics: Passive.
* Hand wired circuit, designed by Frank Requena.
* Shielding: Integral with carbon paint applied to the ground.
* Freeway 3×3 switch, (6 positions).
Operating diagram of the Freeway 3×3 switch, in the photos of this file.
* Tone circuit: K40Y-9 (Soviet) paper-Oil capacitors.
* Potentiometers: CTS with push-pull.
* Pitch compensating circuits integrated in potentiometers, resistor-capacitance
* Input Jack: Switchcraft ¼" black.

FITTINGS

* Nut: Self-lubricating brass.
* Headstock: Gotoh with quick-action self-locking.
* Strap locks: Dunlop strap lock system.
* Buttons: Metallic, with mother-of-pearl trim.
* String mounting: Direct to vibrato.

TREMOLO

Bridge: Schaller 2000 modern gold tremolo, with steel centering wheels.
Threaded vibrato lever.

PICKGUARD

No pickguard. Optional.

COLOR

* Body finish: 2-component polyurethane paint "black matt modern".
* Mast finish: Black dye with 5 coats of high gloss varnish finish.

ACCESSORIES

* gc electric Gator cover
* Strap and cleaning cloth.
* Brand: Engraved on the blade.
* Model: On the shovel.

APPROX. WEIGHT

3.9 Kg. depending on the materials.

POSSIBLE CHANGES

All possible imaginable. Click on the "Custom Guitar" form on this website, and ask us for a quotation.

FINANCING

YES

MANUFACTURING TIME

Depending on component stock, approximately 60 days.

PRICE

Ask for a quotation.
